GaitPilot Guardian Guide: Live Tracking & Safety Dashboard

Welcome to the GaitPilot Guardian Guide. This guide is written specifically for family members, coaches, caregivers, and friends who have been designated as a Guardian by an athlete or walker using the GaitPilot mobile app.

🧭 What Is Your Role as a Guardian?

As a Guardian, you provide a caring, supportive safety network while the walker is out on the road, trail, track, or neighborhood.

You do not need to download or install any app. You can follow their progress directly from any web browser on your smartphone, tablet, or computer.

Through the secure, private GaitPilot Guardian Dashboard, you can: * See Live GPS Location: Follow the walker's real-time position and breadcrumb trail on an interactive, mobile-optimized dark map. * Monitor Safety & Vitals: View live updates of whatever metrics the walker chose to share (speed, walking cadence, heart rate, battery percentage, and form symmetry). * Two-Way Hands-Free Communication: Send text messages or quick action chips from your browser that are spoken aloud into the walker's earbuds. You will receive their hands-free voice replies transcribed back to your chat in real time. * One-Tap Emergency Navigation: Tap a prominent button to immediately launch turn-by-turn driving or walking directions to the walker's exact coordinates in Google Maps. * Audible Watchdog Alerts: If the walker suffers a fall, stops unexpectedly, or experiences cardiac distress, your dashboard sounds an attention-grabbing siren and displays a high-priority emergency banner.

🔒 Athlete-Controlled Safety Access

Guardian monitoring is strictly controlled by the walker: * No Unsolicited Tracking: A guardian cannot remotely turn on GPS, wake up sensors, or begin tracking. A live feed only exists when the walker actively presses START on their mobile app. * Automated or Manual Dispatch: The walker selects which designated guardian contacts receive the encrypted live tracking link via SMS. * Instant Session Teardown: As soon as the walker presses STOP in the mobile app, live GPS relay stops immediately and the room closes.

📱 Mobile-First Layout: Zero-Scroll Overview

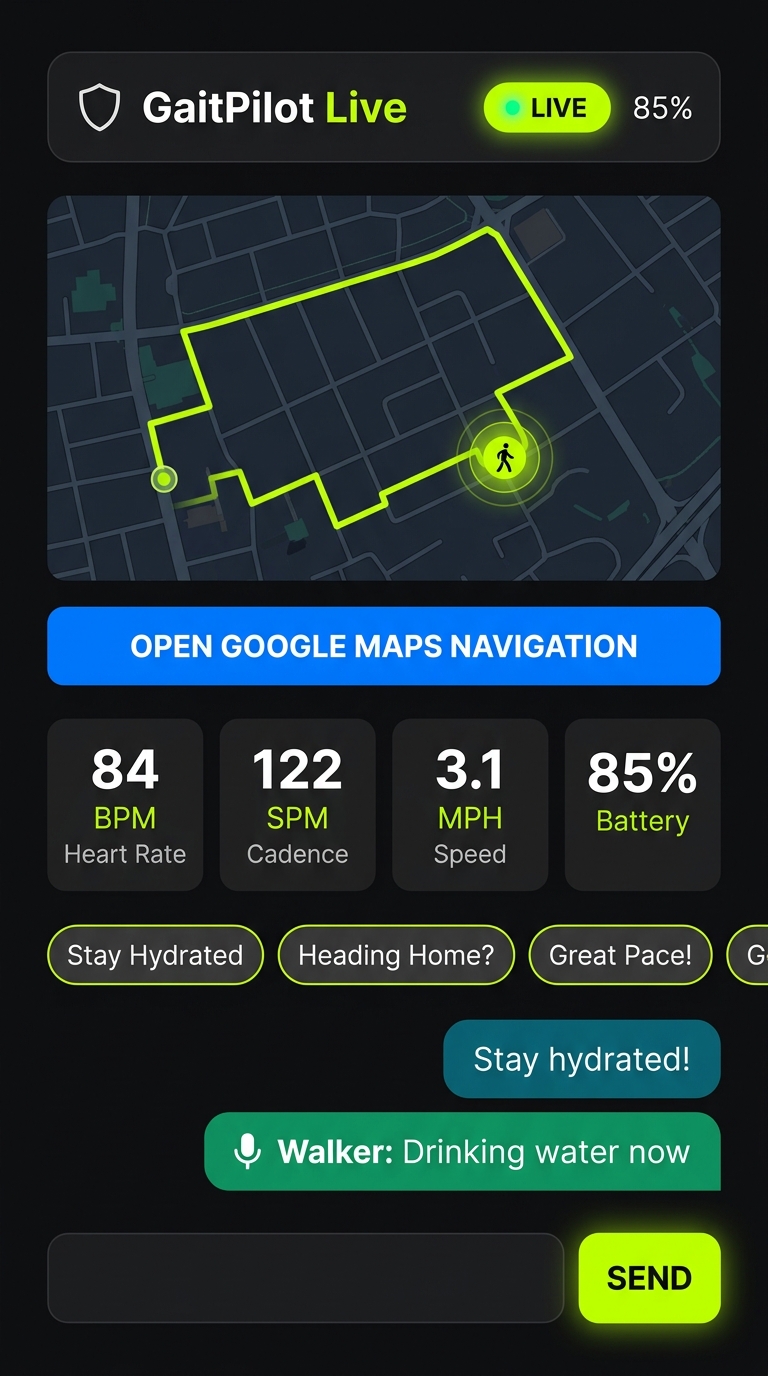

GaitPilot Guardian Live Dashboard

The Guardian Dashboard is designed with a mobile-first, zero-scroll layout. On standard smartphone screens (such as iPhone, Pixel, or Samsung Galaxy), all critical controls fit on a single screen without needing to scroll down:

  1. Header & Status Bar: Shows the walker's name, their phone battery percentage with color-coded battery indicators, and a real-time Freshness Badge:
  2. LIVE (Green): Telemetry packets are streaming normally.
  3. STALE (X ago) (Amber): If the walker enters a cellular dead zone or telemetry stalls for more than 20 seconds, the dot turns amber and shows elapsed time (e.g. STALE - 35s ago), ensuring you never mistake frozen telemetry for active tracking.
  4. Interactive Map (Top Section):
  5. Pre-Lock Friendly Overlay: Before the walker steps outside and acquires their first satellite lock, the dashboard displays a clear status card: "Connecting to Walker... Waiting for first GPS lock". This prevents confusing default maps (such as Null Island off the coast of Africa).
  6. Live Beacon & Trail: Once GPS is locked, the map instantly glides to street level (zoom 16) with a pulsing green location beacon and an electric lime (#C0FF00) breadcrumb trail showing their exact path.
  7. Turn-by-Turn Navigation Button:
  8. A full-width blue button: 🗺️ OPEN GOOGLE MAPS NAVIGATION.
  9. Tapping this button instantly opens the Google Maps app on your phone with directions straight to the walker's current coordinates.
  10. Dynamic Telemetry Metric Cards:
  11. The metric grid automatically adapts to the metrics the athlete has configured to share in their app (e.g., Speed in MPH, Cadence in SPM, Heart Rate in BPM, Battery %, and Form Score).
  12. Live values update smoothly over a secure WebSocket connection.
  13. Two-Way Live Chat & Quick Action Chips (Bottom Section):
  14. Pre-configured Quick Action chips: [Stay Hydrated 💧], [Heading Home? 🏠], [Great Pace! 👏], and [Are You Okay? 🚨].
  15. A text entry bar and Send button for custom messages.
  16. A chronological chat transcript showing your sent messages and the walker's voice replies.

🚀 How It Works Step-by-Step

Step 1: Receive the Live Link via Text Message (SMS)

When the walker starts a workout with Live Share enabled, you will receive an SMS text message on your phone:

"GaitPilot: Alex has started a walk.
Phone Battery: 89%
Track live on Guardian Dashboard:
https://gaitpilot.com/live/?session=..."

This message contains exactly one link to prevent confusion during urgent moments.

Step 2: Open the Dashboard in Any Browser

Tap the link in the text message. It opens immediately in Chrome, Safari, Samsung Internet, Firefox, or Edge. * The dashboard connects securely to the live session room using encrypted WebSockets (WSS / TLS 1.3). * There are no passwords to remember; the link uses a cryptographically secure, private session token.

Step 3: Send Messages & Receive Voice Replies (Dedicated Guardian Channel)

  • Tap any of the Quick Action chips or type a message into the chat field and tap Send.
  • Strict Channel Isolation: Your communications route exclusively through the private Guardian Channel. The walker's athletic coach (if active) has a separate Coach Channel; coaching feedback and technical drills never appear on your Guardian Dashboard.
  • GaitPilot delivers your message to the walker's phone within milliseconds.
  • The phone halts any active metric readout, ducks background audio sonification, speaks your message completely into the walker's earbuds ("Guardian says: [Your Message]. Say your reply now." or "Guardian [Name] says: [Your Message]..."), pauses briefly, and sounds a voice input chime.
  • The walker speaks their reply hands-free during an isolated 4-second listening window.
  • Their spoken response routes directly back to the Guardian Channel and appears in your dashboard chat transcript: "Walker: I'm feeling great, turning back now!".

🚨 Watchdog Emergency Alerts: Falls, Inactivity, & Wear OS SOS

GaitPilot actively monitors the walker's biomechanics and safety using multi-sensor fusion across their phone and optional wearable devices (such as a Wear OS smartwatch).

1. 30-Second Pre-Alert Grace Window (False Alarm Shield)

If the walker experiences an impact fall, prolonged unexpected inactivity, or triggers a manual SOS from their Wear OS watch: * Distress Triggers: * Impact Fall: High-G drop with subsequent immobility. * Idle Watchdog: Prolonged cessation of movement without pausing the walk. * Wear OS Watch SOS: Walker presses the dedicated red SOS button on their companion smartwatch. * Pre-Alert Countdown: The walker's phone and watch sound an immediate 30-second countdown in their earbuds and device speakers. * Privacy Protected: During this 30-second window, no alert is sent to your dashboard and no SMS is dispatched. The dashboard continues showing normal live tracking. * Easy Dismissal: If the walker is fine (e.g. stopped to talk with a neighbor or accidentally tapped SOS), they can cancel the alert hands-free (saying "I'm okay", tapping their watch, or pressing an earbud button). Dismissing instantly returns tracking to normal without alarming you.

2. Live Guardian Emergency Broadcast (Simultaneous SMS + Dashboard)

If the 30-second countdown expires without being dismissed: * Instant Out-of-Band Telemetry Push: The phone immediately pushes an emergency state update to your live dashboard without waiting for the next scheduled GPS cycle. * Dashboard Emergency Banner: A pulsating crimson banner flashes across the top of your Guardian Dashboard detailing the exact distress type (e.g. 🚨 EMERGENCY WATCHDOG ALERT: Manual SOS Beacon Activated or Prolonged Inactivity / Potential Fall Detected). * Audible Browser Siren: The dashboard synthesizes a piercing two-tone audio alert siren through your device speakers using the Web Audio API, waking or alerting you even in noisy environments. * Emergency SMS Dispatched: You simultaneously receive an urgent text message on your phone with the distress reason, battery percentage, heart rate, and exact GPS coordinates with a direct navigation link. * Map Auto-Focus & Navigation: The live map instantly centers on the walker's coordinates, and the prominent "OPEN GOOGLE MAPS NAVIGATION" button lets you start driving or walking directions in one tap.

📺 Living Room TV & Smart Display Companion (gaitpilot.com/tv)

For family members who want to monitor the walker from the comfort of their living room couch, kitchen smart display, or office without checking a smartphone:

1. Zero-Install TV Viewing

  • Open the built-in web browser on your Google TV, Samsung Smart TV, LG TV, Amazon Fire TV, or tablet.
  • Go to: https://gaitpilot.com/tv (Tip: Add it to your TV favorites or home screen bar).
  • The TV displays a large, high-contrast 4-digit code (such as 5824).

2. One-Time 4-Digit Pairing & Multi-Screen Management

  • On the walker's phone, open Settings → Link TV / Smart Display and enter the 4-digit code.
  • Walkers can give the display an optional nickname, such as "Living Room TV", "Kitchen Nest Hub", or "Grandma's Display".
  • The TV immediately pairs with the walker's profile. Walkers can link multiple screens simultaneously across different rooms or family households worldwide.
  • In the app's Linked Screens deck, the walker can see all active paired screens, verify their online connection, and remove any individual screen with a single tap or unlink all at once.

3. Automatic Hands-Free Wake & Standby

  • Automatic Wake-up: The moment the walker taps "Start Walk" on their phone, the TV screen automatically wakes up and displays the full-screen 16:9 Live Guardian Dashboard or Coach Command Center with live map breadcrumbs and vitals.
  • True Cloud Independence: The TV streams directly over home Wi-Fi from the cloud relay. The walker can lock their phone and walk miles away—the TV updates smoothly in real time.
  • Seamless TV Channel Switching: Family can press the "Home", "Netflix", or "Input" button on the TV remote to watch TV or movies at any time. Clicking the browser icon brings back the live walk instantly.
  • Auto-Standby: When the walker finishes their workout, the TV displays a clean summary for 3 minutes before returning to ambient standby.

4. Google Nest Hub Max & Kitchen Smart Displays (Voice Setup)

If your family uses a Google Nest Hub Max or smart display on the kitchen counter: * Voice Command: Say: "Hey Google, open gaitpilot.com/tv". * Pairing: The Nest Hub Max displays the 4-digit code. Sighted family members can read the 4 digits to the walker, or enter it in the walker's GaitPilot app under Settings → Link TV / Smart Display. * Zero-Touch Live Wake: Once paired, you never need the code again. Keep the Nest Hub Max on your counter; whenever the walker starts their workout, the smart display automatically illuminates with live map breadcrumbs, battery level, and vital signs.

📋 Post-Workout Session Summaries & Safety Audit

At the conclusion of every workout, GaitPilot records an immutable forensic record in the Session Summary and exported text report: * Configuration Snapshot: Documents the exact status of Guardian Safety (ACTIVE/INACTIVE), Live Share (STREAMING/OFF), Inactivity Watchdog timeout (e.g. 2 min), Fall Watchdog (ON/OFF), Emergency Contact details, and TV Companion pairing status. * Safety & Guardian Incident Log: Chronologically audits every pre-alert countdown, user dismissal, and emergency dispatch, or logs explicit confirmation: "No safety incidents logged. Continuous protection maintained." * Complete Shareability: Reports are shared via secure content:// URI files, allowing full forensic review by physical therapists, coaches, and family members without text buffer truncations.

🔒 Privacy, Security & Data Protection

  • Ephemeral In-Memory Brokering: Live telemetry data is streamed through volatile backend memory rooms. Coordinates and chat messages are never permanently stored in cloud databases during the live session.
  • Automatic Purge: The moment the walker concludes their session, the live session room is closed and purged from the server.
  • Cryptographic Tokens: Session links use high-entropy 128-bit UUIDs that cannot be guessed or scanned.
  • Athlete-Controlled Sharing: The walker decides exactly which vitals are visible to guardians via the in-app Metric Config toggles.
